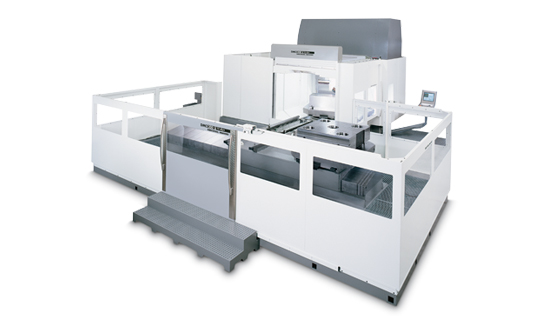

DMC 200 FD | Milling and turning in XL

In their milling functions, the DMC FD machines are similar to the DMC U-series. They master simultaneous 5-sided- and up to 5-axis machining due to a universal swivel-head, which is infinitely adjustable between horizontal and vertical positions and functions as an NC-controlled B-axis (optional: A-axis). The turning features of the DMC 200 FD pay off especially during complete machining (milling and turning in a single setup!) of heavy and bulky parts. The NC-rotary table with direct-drive technology, a torque of 6,000 Nm, a holding torque of 10,000 Nm, and speeds of up to 200 rpm permit a wide range of milling- and turning applications for large work pieces weighing up to 3,000 kg. This complete solution not only saves time and money but also achieves greater flexibility and more precise results.
